Integrating UDrone into Your World

Importing and Placement in Your World​

  1. Create a world project with Unity 2022.
  2. Import the UDrone_v2.0.unitypackage
  3. Place the DroneManager prefab from Assets/UdonDrone/Prefabs in your world (place only one in your scene).
  4. Place as many DroneSet prefabs from Assets/UdonDrone/Prefabs as you want.

Placing Spectator Displays​

There are currently three types of spectator displays available.

DroneCamFPVViewer

A camera that displays the FPV view of the selected drone. You can switch drones locally. Due to synchronization issues, the camera may rotate violently at times.

DroneCamTPVViewer

A display that shows the selected drone in third-person view. Camera switching can be done locally.

SyncDroneCamFPVViewer

A camera that displays the FPV view of the selected drone, but unlike DroneCamViewer, drone switching is global. This helps reduce the issue of the camera moving violently due to synchronization.

You can place as many of these spectator displays in your scene as you want.

Displaying Camera Feed on Other Objects​

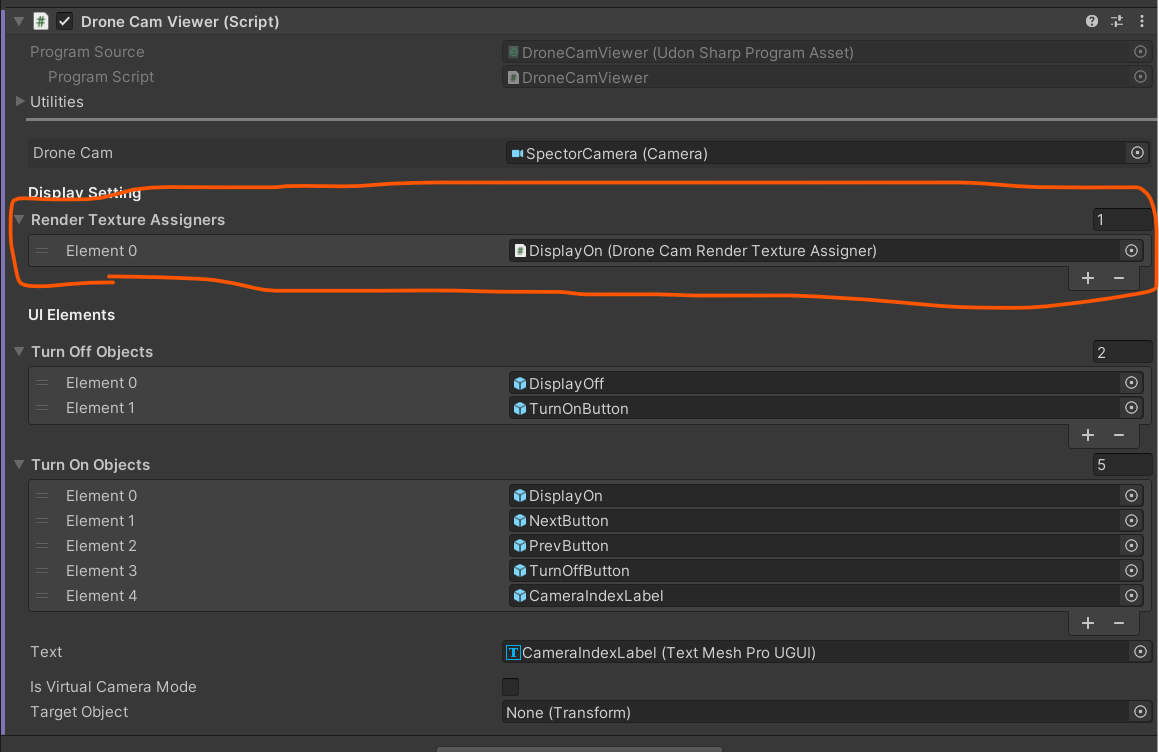

Viewer-type Udons have an item called Render Texture Assigners.

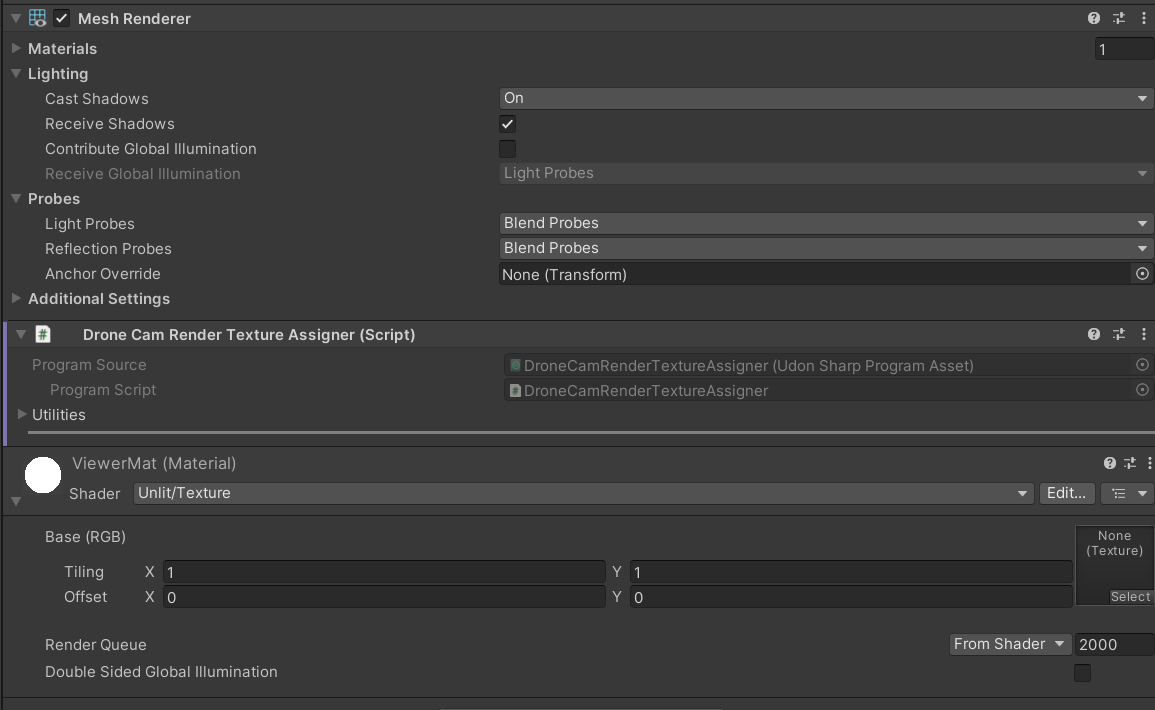

By attaching the DroneCamRenderTextureAssigner Udon to objects with a MeshRenderer and setting them here, you can pass the video texture to that mesh's material.

Setting Up Time Attack Tracks​

Add the TimeAttackManager to the scene. Place only one of this prefab. This prefab contains functions to manage time attacks.

Next, add the TimeAttackTrack to the scene. You can set up a course by specifying objects with the Time Attack Check Point Udon attached to the Checkpoints.

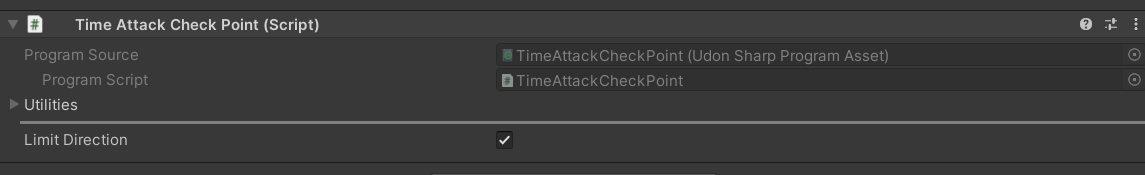

In Time Attack Check Point, you can enable Limit Direction to make it so that drones must enter from a direction along the Z-axis of this object to be detected.

The TimeAttackLogPanel is a panel that outputs the player's best lap time and best record as a log. It functions just by adding it to the scene.

The number of laps can be set from the Max Lap on TimeAttackTrack.

Other Utilities​

ResetAllDroneButton​

A button that resets all drones placed in the world. It can be used just by placing it in the scene.

InputChacker​

A debug object that visualizes all controller inputs. It can be used just by placing it in the scene.

Changing Drone Color​

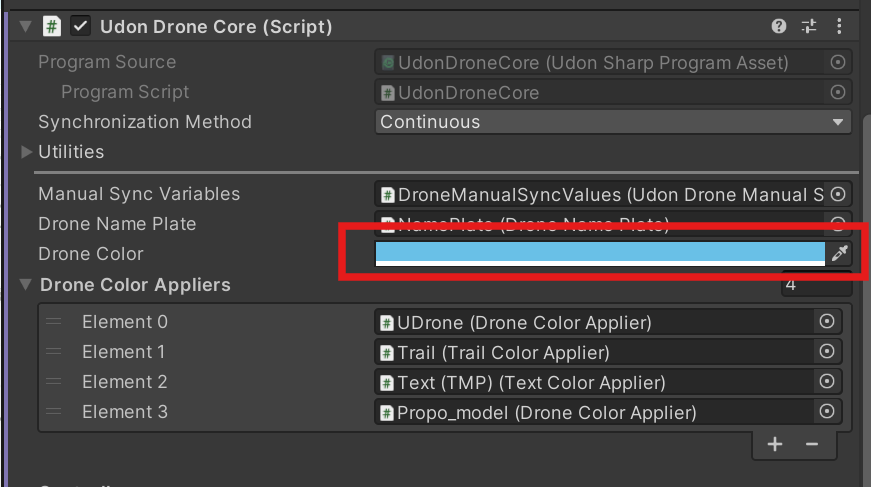

Drone color can be set in UdonDroneCore's DroneColor. The color is set when the editor is played.

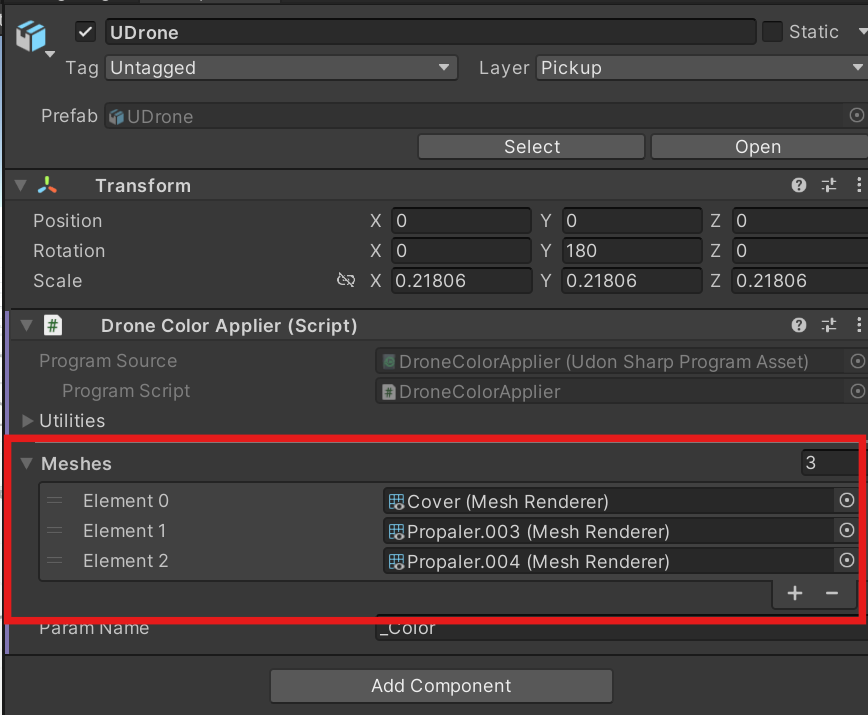

If you want to apply the same color to the material of a custom mesh, add the desired mesh to Drone Color Applier in UDrone/UDrone.
